產品名稱
NAME
|

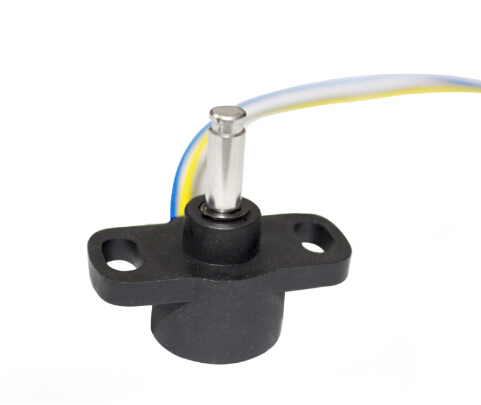

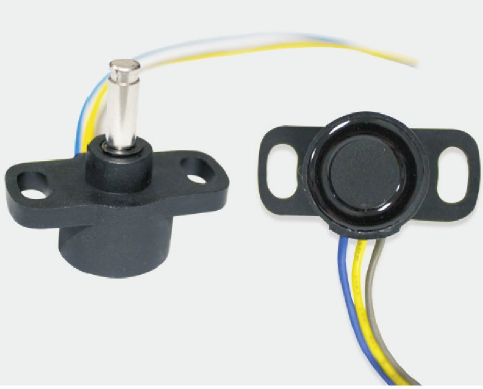

WDA-D22-A精密導電塑料電位器
22mm Precision conductive plastic potentiometer
|
|
電氣參數 Electrical
|
|
有效量程Effective stroke
|
0-300°
|
|
阻值范圍Resistance Range
|
0KΩ-3kΩ
|
|
阻值變化規律Resistance Taper
|
B(JIS直線 JIS LINEAR)
|
|
線性精度Independent Linearity
|
±0.3%
|
|
輸出信號Ooutput signal
|
分壓器Voltage divider
|
|
重復性精度 Repeatability
|
0.007°
|
|
最大工作電壓Dielectric Strength
|
20V
|
|
絕緣電阻Insulation Resistance
|
10M
|
|
分辨率Resolution
|
無限大Essentially infinite
|
|
最大工作電壓Maximum Input Voltage
|
20VDC
|
|
環境參數 Environmental
|
|
存儲溫度 Storage Temperature Range
|
-60℃～+125℃
|
|
工作溫度 Operating Temperature Range
|
-60℃～+125℃
|
|
溫度漂移Temperature coefficien
|
9ppm/℃
|
|
旋轉壽命Rotational Life
|
100*106
|
|
IP防護等級 IP Range
|
IP65
|
|
工作速度Operating speed
|
10000rpm
|
|
機械參數 Mechanical
|
|
尺寸SIZE
|

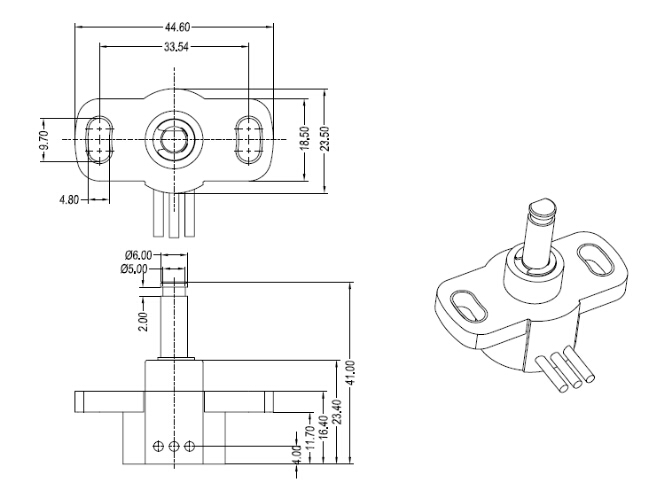

見附圖SEE DRAWING
|
|
機械行程Mechanical Travel
|
連續旋轉
|
|
外形尺寸Housing size
|
φ22mm
|
|
輸出軸Output shaft
|
φ6mm
|
|
鎖緊力矩Mounting Nut Torque
|
15Kgf·cm
|
|
軸跳動Shaft Runout
|
0.15mm
|
|
軸端間隙 Shaft End Play
|
(出軸長度shaft length 30 mm)0.15mm
|
|
徑向間隙Shaft Radial Play
|
0.15mm
|
|
軸的推力Shaft Strength (push)
|
125 N (12.75 kgf ) min.
|
|
軸的拉力Shaft Strength (tensile)
|
125 N (12.75 kgf ) min.
|
|
配件 Hardware.
|
|
